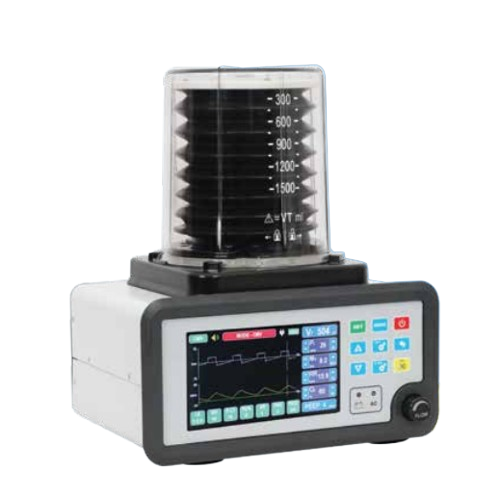

Anesthesia Ventilator-180
The AVS-180 is an advanced anesthesia ventilator that offers precise volume and time-cycled ventilation for adult and pediatric patients. Its user-friendly interface features a 7-inch TFT touchscreen display and a lithium-ion battery backup for up to 2 hours. The AVS-180 supports various ventilation modes, including CMV, ACMV, SIMV, PLV, BAG, and Standby. Compatible with a wide range of anesthesia machines, the AVS-180 is a versatile and reliable solution for surgical procedures.
Specification
| Control Parameter | Range/Values |
|---|---|
| Mode of Operation | CMV, ACMV, SIMV, PLV, BAG, Standby |
| Patient Type | Adult and Pediatric |
| I:E Ratio | 4:1 to 1:4 |
| Plateau | 0 to 50% |
| SIMV Rate | 1 to 59 BPM |
| Trigger | 1 to 9 cmH2O |
| Pressure Limit | 0 to 60 cmH2O |
| Tidal Volume | 50 to 1500 ml |
| Respiratory Rate | 6 to 60 BPM |
| Alarms and Indications | Range/Values |
|---|---|
| Monitoring Parameters | Tidal Volume, Minute Volume, Pi, RR, FIO2, PEEP Obtained |
| FIO2 % | 21 to 100 |
| PEEP | 0 to 60 cmH2O |
| Inspiratory Pressure High | 20 to 60 cmH2O |
| Inspiratory Pressure Low | 0 to 15 cmH2O |
| Minute Volume High | 3 to 50 Liters |
| Minute Volume Low | 0 to 47 Liters |
| RR High | 15 to 100 BPM |
| RR Low | 5 to 90 BPM |
| Alarms | Pressure Low and High, RR Low and High, FIO2 Low and High, Active Patient, Patient Disconnected, Driving Gas Failure, Low Battery Indication, Minute Volume Low-High |
| General Parameter | Value/Details |
|---|---|
| Display | 7″ TFT with Touch Screen |
| Power Input | 20W |
| Driving Gas Input Pressure | 2.4 ~ 6 Bar |
| Dimension | 316 x 270 x 374 mm (L x W x H) |
| Battery Backup | 2 hours (Lithium-ion) |
Anesthesia Ventilator-270
The AVS-270, a sophisticated microprocessor-based anesthesia ventilator, offers user-friendly operation for both adult and pediatric patients. Its 7-inch TFT touchscreen display provides clear visualization of flow, volume, and pressure graphs and loops. Equipped with a lithium-ion battery backup for up to 2 hours, AVS-270 ensures uninterrupted ventilation This versatile ventilator supports various modes, including VCMV, V-SIMV, PCMV, P-SIMV, PRVC, PSV, BAG, and Standby, making it compatible with all types of anesthesia machines. The implementation of fresh gas compensation enhances the safety of
anesthesia delivery.
Specification
| Control Parameter | Range/Values |
|---|---|
| Mode of Operation | VCMV, V-SIMV, PCMV, P-SIMV, PRVC, PSV, BAG, Standby |
| Patient Type | Adult and Child [Selectable] |
| Tidal Volume | 50 to 1500 ml |
| Ti | 0.2 to 8.0 Sec |
| Pi | 5 to 60 cmH2O |
| Respiratory Rate | 1 to 60 Bpm |
| Plateau | 0 to 50% |
| PEEP | 3 to 30 cmH2O |
| Pressure Support | 5 to 40 cmH2O |
| Trigger | 0.5 to 5.0 cmH2O |
| Backup RR | 6 to 60 Bpm |
| Backup Mode | VCMV, V-SIMV, PCMV, P-SIMV, PRVC |
| Alarms and Indications | Range/Values |
|---|---|
| Monitoring Parameters | Tidal Volume, Minute Volume, RR, FIO2, PI, PEEP Obtained |
| Loop Types | Flow Vs Pressure, Flow Vs Volume, Volume Vs Pressure [Selectable Any Two] |
| Graph Types | Flow, Pressure, Volume [Selectable Any Two] |
| Inspiratory Pressure High | 10 to 60 cmH2O |
| Inspiratory Pressure Low | 5 to 15 cmH2O |
| Minute Volume High | 3 to 50 Liters |
| Minute Volume Low | 0.1 to 47 Liters |
| RR High | 15 to 100 BPM |
| RR Low | 5 to 90 BPM |
| FIO2 % | 21 to 100 |
| Alarms | Low and High for Pressure, RR, Minute Volume, FIO2, Active Patient, Patient Disconnected, Driving Gas Failure, Low Battery Indication, Apnea |
| General Parameter | Value/Details |
|---|---|
| Display | 7″ TFT with Touch Screen |
| Power Input | 20W |
| Driving Gas Input Pressure | 2.4 ~ 6 Bar |
| Dimension | 316 x 270 x 374 mm (L x W x H) |
| Battery Backup | 2 hours (Lithium-ion) |
