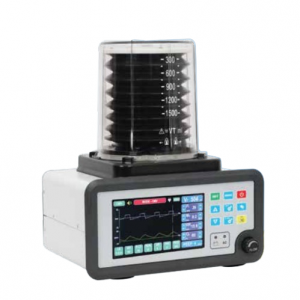

Anesthesia Ventilator-270

The AVS-270, a sophisticated microprocessor-based anesthesia ventilator, offers user-friendly operation for both adult and pediatric patients. Its 7-inch TFT touchscreen display provides clear visualization of flow, volume, and pressure graphs and loops. Equipped with a lithium-ion battery backup for up to 2 hours, AVS-270 ensures uninterrupted ventilation This versatile ventilator supports various modes, including VCMV, V-SIMV, PCMV, P-SIMV, PRVC, PSV, BAG, and Standby, making it compatible with all types of anesthesia machines. The implementation of fresh gas compensation enhances the safety of anesthesia delivery.

Specifications

Control ParameterRange/Values
Mode of OperationVCMV, V-SIMV, PCMV, P-SIMV, PRVC, PSV, BAG, Standby
Patient TypeAdult and Child [Selectable]
Tidal Volume50 to 1500 ml
Ti0.2 to 8.0 Sec
Pi5 to 60 cmH2O
Respiratory Rate1 to 60 Bpm
Plateau0 to 50%
PEEP3 to 30 cmH2O
Pressure Support5 to 40 cmH2O
Trigger0.5 to 5.0 cmH2O
Backup RR6 to 60 Bpm
Backup ModeVCMV, V-SIMV, PCMV, P-SIMV, PRVC
Alarms and IndicationsRange/Values
Monitoring ParametersTidal Volume, Minute Volume, RR, FIO2, PI, PEEP Obtained
Loop TypesFlow Vs Pressure, Flow Vs Volume, Volume Vs Pressure [Selectable Any Two]
Graph TypesFlow, Pressure, Volume [Selectable Any Two]
Inspiratory Pressure High10 to 60 cmH2O
Inspiratory Pressure Low5 to 15 cmH2O
Minute Volume High3 to 50 Liters
Minute Volume Low0.1 to 47 Liters
RR High15 to 100 BPM
RR Low5 to 90 BPM
FIO2 %21 to 100
AlarmsLow and High for Pressure,
RR, Minute Volume, FIO2,
Active Patient, Patient Disconnected,
Driving Gas Failure,
Low Battery Indication, Apnea
General ParameterValue/Details
Display7″ TFT with Touch Screen
Power Input20W
Driving Gas Input Pressure2.4 ~ 6 Bar
Dimension316 x 270 x 374 mm (L x W x H)
Battery Backup2 hours (Lithium-ion)
