CONSTELLA

TECHNICAL SPECIFICATIONS

Parameter CONSTELLA-C
Max. Central Illuminance at 1m Distance 160,000 Lux
Light Field Diameter at 1m Distance (d50-d10) 150mm – 300mm
Light Head Diameter 520mm
Depth of Illuminance at 20% (L1+L2) 1000mm
Depth of Illuminance at 60% (L1+L2) 700mm
Correlated Color Temperature (CCT) 3500K-5500K
Color Rendering Index (CRI) 95
Power Consumption 50 W
Focus Mode Variable
Dimming Range 0-100%
No. of LEDs 18
Service Life of LEDs 60,000 hrs
Power Supply 230V ±10% 50Hz +5%
Ambient / Operating Temperature 5°C – 40°C
Humidity 10%-90%

The specifications mentioned above can be used for single, double, triple and mobile versions CONSTELLA series All values confirm to IEC 60601-2-41 and are subject to general industrial tolerance +5% In accordance with the IEC 60601-2-41 standard, the maximum illuminance must not exceed 160,000 lux. | 98 CRI available in highest model.
*Focus Mode Fixed = Standard focus and Variable = Standard, Narrow, Deep Cavity & Endo mode. **110/60Hz available on request.

CAMERA SPECIFICATIONS

PARAMETER CAMERA – D CAMERA – E
Image Sensor 1/2.8-type CMOS (Progressive Scan)
Effective Number of Pixels 5.14 M pixels
Signal System (HD) 720p, 1080p
Video Output SDI HDMI
Zoom 10X Optical, 16X Digital
White Balance Auto
Exposure Auto, Manual
Shutter Speed 1/1 to 1/10,000 sec
Focusing System Auto, Manual, One push
Signal to Noise Ratio (SNR) More than 50dB
Aperture F 1.8-3.4
Power 4.4W

CONFIGURATION

Mobile Dome

Single Dome

Double Dome

Triple Dome

OPTIONAL ACCESSORIES

Full HD Camera

Monitor Arm

Full HD monitor

Battery Backup

Touch Control Panel

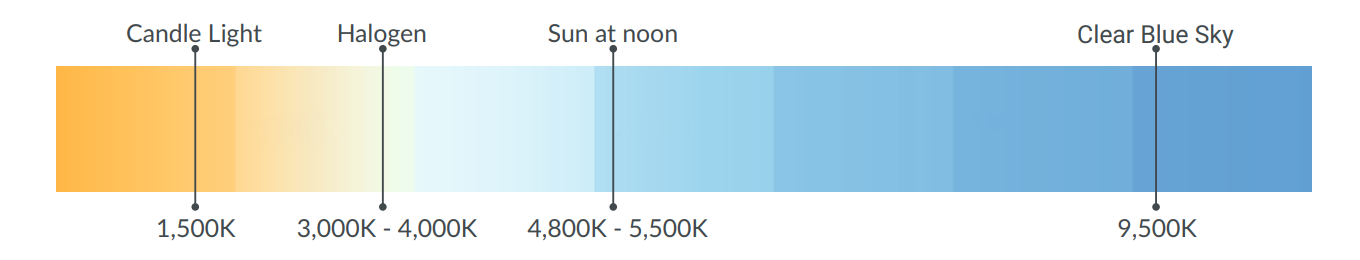

CORRELATED COLOR TEMPERATURE

Correlated Color temperature adjustment feature provides the ideal light for the planned surgery. User can choose color temperature settings from 3,500K warm white values to 5,500K cool white values.

FOCAL ADJUSTMENTS FOR DESIRED CLINICAL APPLICATION

Precise focus with a D50 of 150, and a D10 of 300. Can be used for the majority of surgical procedures.

Special sharp focus mode with a D50 of 120 and a D10 of 150. Recommended for smaller operating cavity such as neuro or pediatric
procedures.

Triple endo mode, warm, natural and cool to provide perfect ambient lighting for endoscopic procedures

Special focus mode designed to provide enhanced illumination in deep cavity procedures. Specially recommended for cardiac procedures.

PRECISE LIGHTING : QUALITY OVER QUANTITY

Constella series of surgical lights is carefully designed to deliver high quality of light precisely at the surgical cavity, where illumination is necessary. By contrast many other manufacturers focus only bright light, which can sometimes cause an undesired outcome of glare and increases unnecessary heat on surgeon’s head.

TRULY NATURAL AND VIVID LIGHTING

Subpar Surgical Light
(90 CRI – 80 GAI)

Existing standard for surgical light
(98 CRI – 82 GAI)

Celesta Surgical Light
(98 CRI – 92 GAI)

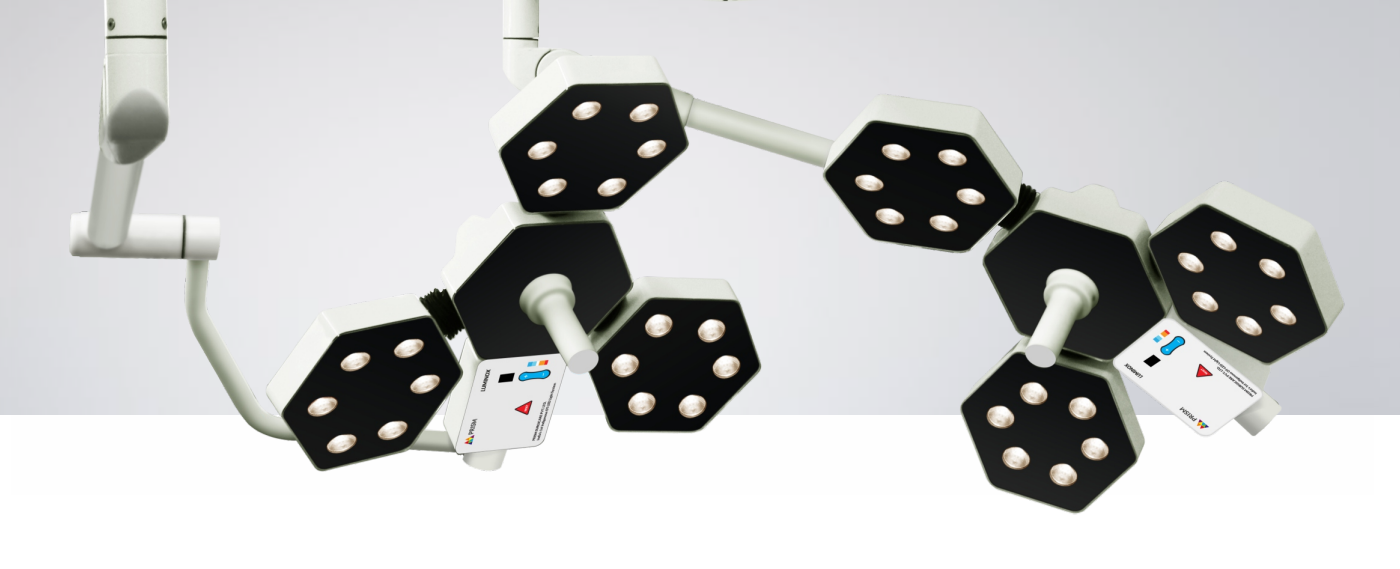

IRIS - 300 Dual Dome

Technical Specifications

Parameter Principal Dome Satellite Dome
Central Illuminance (at 1m distance) 1,60,000 lux 1,60,000 lux
Light Field Diameter (at 1m distance) 200 mm – 300 mm 200 mm – 300 mm
Depth of Illuminance (20%) 1,200 mm 1,200 mm
Correlated Color Temperature 4,300 K 4,300 K
Light Head Diameter 650 mm 650 mm
Service Life of Bulb 50,000 hrs 50,000 hrs
Bulb Power Consumption 50 W 50 W
Power Supply 230-240 V, 60 Hz 230-240 V, 60 Hz
Dimming Range 10% – 100% 10% – 100%

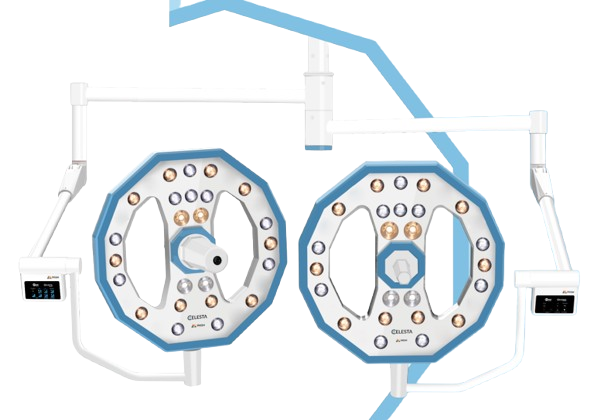

CELESTA

Parameter CELESTA-A CELESTA-C CELESTA-D CELESTA-F
Max. Central Illuminance (1m) 1,30,000 Lux 1,30,000 Lux 1,60,000 Lux 1,60,000 Lux
Light Field Diameter (d50-d10) 150 mm – 300 mm 150 mm – 300 mm 150 mm – 300 mm 150 mm – 300 mm
Light Head Diameter 600 mm 600 mm 600 mm 600 mm
Depth of Illuminance at 20% 1,200 mm 1,200 mm 1,200 mm 1,200 mm
Depth of Illuminance at 60% 450 mm 450 mm 500 mm 500 mm
Correlated Color Temperature (CCT) 4,500 K ± 500 3,500 K – 5,500 K 4,500 K ± 500 3,500 K – 5,500 K
Color Rendering Index (CRI) 95 95 95 95
Power Consumption 55 W 55 W 65 W 65 W
Shadow Dilution with Tube 92% 92% 94% 94%
Shadow Dilution with One Mask 74% 74% 75% 75%
Shadow Dilution with Tube & One Mask 67% 67% 70% 70%
Shadow Dilution with Two Masks 53% 53% 55% 55%
Shadow Dilution with Tube & Two Masks 45% 45% 45% 45%
Focus Mode Fixed Fixed Variable Variable
Dimming Range 0 – 100%
Service Life of LEDs 60,000 hrs
Power Supply 230V ± 10%, 50Hz ± 5%
Ambient/Operating Temperature 5°C – 40°C
Storage Temperature -40°C – 60°C
Humidity 10% – 90%
Battery Backup (Optional) 30 mins – 2 hrs

The specifications mentioned above can be used for single, double, triple and mobile versions CONSTELLA series All values confirm to IEC 60601-2-41 and are subject to general industrial tolerance +5% In accordance with the IEC 60601-2-41 standard, the maximum illuminance must not exceed 160,000 lux. | 98 CRI available in highest model.
*Focus Mode Fixed = Standard focus and Variable = Standard, Narrow, Deep Cavity & Endo mode. **110/60Hz available on request.

CAMERA SPECIFICATIONS

PARAMETER CAMERA – D CAMERA – E
Image Sensor 1/2.8-type CMOS (Progressive Scan)
Effective Number of Pixels 5.14 M pixels
Signal System (HD) 720p, 1080p
Video Output SDI HDMI
Zoom 10X Optical, 16X Digital
White Balance Auto
Exposure Auto, Manual
Shutter Speed 1/1 to 1/10,000 sec
Focusing System Auto, Manual, One push
Signal to Noise Ratio (SNR) More than 50dB
Aperture F 1.8-3.4
Power 4.4W

CONFIGURATION

Mobile Dome

Single Dome

Double Dome

Triple Dome

OPTIONAL ACCESSORIES

Full HD Camera

Monitor Arm

Full HD monitor

Battery Backup

Touch Control Panel

CORRELATED COLOR TEMPERATURE

Correlated Color temperature adjustment feature provides the ideal light for the planned surgery. User can choose color temperature settings from 3,500K warm white values to 5,500K cool white values.

FOCAL ADJUSTMENTS FOR DESIRED CLINICAL APPLICATION

Precise focus with a D50 of 150, and a D10 of 300. Can be used for the majority of surgical procedures.

Special sharp focus mode with a D50 of 120 and a D10 of 150. Recommended for smaller operating cavity such as neuro or pediatric
procedures.

Triple endo mode, warm, natural and cool to provide perfect ambient lighting for endoscopic procedures

Special focus mode designed to provide enhanced illumination in deep cavity procedures. Specially recommended for cardiac procedures.

PRECISE LIGHTING : QUALITY OVER QUANTITY

Celesta series of surgical lights is carefully designed to deliver high quality of light precisely at the surgical cavity, where illumination is necessary. By contrast many other manufacturers focus only bright light, which can sometimes cause an undesired outcome of glare and increases unnecessary heat on surgeon’s head.

TRULY NATURAL AND VIVID LIGHTING

The surgical cavity illuminated by the surgical light is a multilayered, multicolored illumination site with organs and tissue that are very close to one another. It is very important for the surgeon to look at the true colors of various tissues to be able to do accurate clinical diagnosis and comfortably differentiate one tissue and organ from the other. Thus true color rendering and vividness, both are very important for the operating surgeon. Celesta series of surgical light is the first

surgical light to deliver over 98 CRI (Color Rendering Index) with a combination of over 92 GAI (Gamut Area Index), thus a truly natural and vivid light. Just as CRI is a measure of the light source’s capacity to bring out the natural colors of the object, GAI is the measure of the ability of the light source to differentiate one object from the other. Prism is the first brand globally to actively promote GAI as an important performance parameter of a surgical light.

Subpar Surgical Light
(90 CRI – 80 GAI)

Existing standard for surgical light
(98 CRI – 82 GAI)

Celesta Surgical Light
(98 CRI – 92 GAI)

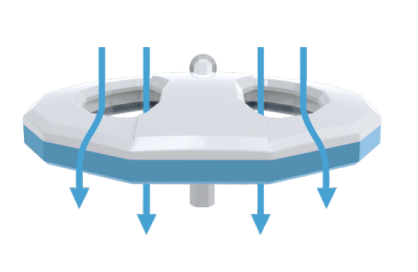

Laminar air flow Compatibility

Light head design enables the ideal laminar air flow on the surgical site minimizing contamination of bacteria.
