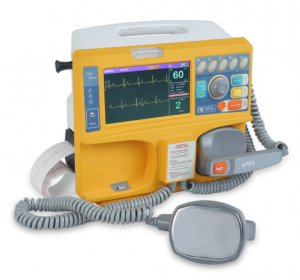

VITAL WAVE DEFIBRILLATOR
Features
- 7″ color TFT display
- Easy energy selection up to 270 joules
- Less than 8 seconds for full charge at 270 joules
- More than 50 shocks on full charge battery
- Event trend and storage up to 24 hours
- ECG acquisition via paddles & cable
- Upgradable to SpO2 & NIBP
Technical Specifications
Measuring Parameters
| Parameter | Details |
|---|---|
| Channel | 2 Channel |
| Electrode | 3/5 Leads |
| ECG Acquisition | Patient Cable and Paddles |
| Display | 2 Waveforms with HR and Joules selected |
| Lead | Lead I, II, III, aVR, aVL, aVF, V |
| Gain Selection | 5/10/15/20 mm/mV |
| Sweep Speed | 12.5, 25, or 50 mm/sec |
| Heart Rate Range | 30-240 bpm |
| Heart Rate Accuracy | ±2 bpm |
| Frequency Response | 0.05 to 40 Hz |
| CMRR | >100 dB |
| Input Impedance | >100 M Ohms |
Recorder
| Parameter | Details |
|---|---|
| Type | High-resolution thermal array recorder |
| Printing Speed | 25 mm/sec |
| Printer Paper Size | 57 mm x 20 m |
| Details on Print | HR, ECG waveform along with energy delivery, Date, Time, Patient Details (ID, Name, Age, Sex), Joules selected, Sweep speed, and Gain |
Display
| Parameter | Details |
|---|---|
| Type | Color TFT display |
| Size | 7″ Diagonally |
| Resolution | 800 x 480 Pixels |
Electrical
| Parameter | Details |
|---|---|
| Power Input | AC 230 V, 50 Hz |
| Battery Rating | 14.8V / 4400 mAh, Li-Polymer |
| Charging Time | 8 Hours |
| Operating Time | 8 Hours |
| Shock Capacity | 40-50 shocks (270 joules) or more than 3 hours monitoring without printing |
General
| Parameter | Details |
|---|---|
| Weight | 5.4 Kg |
| Dimensions | 403 (L) x 152 (H) x 324 (W) mm |
| Working Temperature & Humidity | 0-40°C & up to 90% non-condensing |
