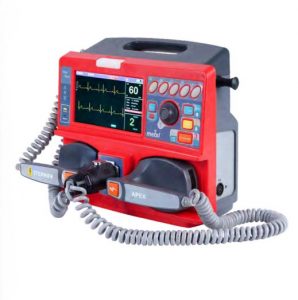

VITAL WAVE WITH AED
Features
- 7″ Colour LCD with bright high-resolution display
- Easy energy selection up to 270 joules
- Fast charging – Less than 10 seconds for 200 joules
- ECG monitoring & defibrillation capability
- Event trend and storage up to 24 hours
- ECG acquisition via paddles, ECG cable, and multi-function therapy electrodes
- Upgradable monitoring options – SpO₂, NIBP, & EtCO₂
- Multiple operational modes – Manual, Synchronized Cardioversion, AED, & Pacer
- Paddle contact indication with voice prompt support
- Compatible for both Adult & Pediatric patients
- Self-test facility providing a “Ready” indication on screen
- Displays selected and delivered energy
- Advisory protocols comply with AHA & ERC guidelines
Technical Specifications
| Measuring Parameters | Specifications |
|---|---|
| Channel | 3 Channel |
| Electrode | 5/6 Leads |
| ECG Acquisition | Patient Cable, Paddles, and Multifunction Therapy Electrodes |
| Display | 2 Waveforms with HR and Joules Selected |
| Lead | Lead I, II, III, aVR, aVL, aVF, V |
| Gain Selection | 5/10/15/20 mm/mV |
| Sweep Speed | 12.5, 25, or 50 mm/sec |
| Heart Rate Range | 30 – 240 bpm |
| Heart Rate Accuracy | ±2 bpm |
| Frequency Response | 0.05 to 40 Hz |
| CMRR (Common Mode Rejection Ratio) | >100 dB |
| Input Impedance | >100 M Ohms |
| AED Mode | – Text & voice prompts – Standard discharge sequence – Impedance detection in range of 25-300 ohms – Automatic analysis for shockable & non-shockable rhythm – Multifunction therapy electrodes – Ability to filter CPR artifacts without interrupting chest compression |
| Pacemaker | – External transcutaneous pacing – Fixed & demand mode of operation – Frequency: 30 – 240 ppm – Impulse current: 0-200 mA – Pulse width of 40 ms |
| Recorder | Specifications |
|---|---|
| Type | High-Resolution Thermal Array Recorder |
| Printing Speed | 25 mm/sec |
| Printer Paper Size | 57 mm x 20 Mtr |
| Details on Print | – HR, ECG waveform along with energy delivery – Date, Time, Patient Details (ID, Name, Age, Sex) – Joules Selected – Sweep Speed and Gain |
| Display | Specifications |
|---|---|
| Type | Color TFT Display |
| Size | 7″ Diagonally |
| Resolution | 800 x 480 Pixels |
| Electrical | Specifications |
|---|---|
| Power Input | 100 – 240 V AC, 50 Hz |
| Battery Rating | 14.8 V / 4400 mAh, Li-Polymer |
| Charging Time | 8 Hours |
| Operating Time | >50 shocks (270 joules) or more than 4 Hours monitoring without printing |
| General | Specifications |
|---|---|
| Weight | 5.4 Kg |
| Dimensions | 403 (L) x 152 (H) x 324 (W) mm |
| Working Temperature | 0-45°C |
| Relative Humidity | 30-90% (non-condensing) |
| Alarm Settings | User selectable |
| Self-Test Facility | Automatic, manual |
| Dust & Water Protection | IP 44 |
| Charge/Discharge Transport Facility | Both paddles & main unit suitable for ambulance on ground |
| Accessories | Quantity |
|---|---|
| 5/6 Lead ECG Cable | 1 No |
| Disposable ECG Electrodes | 1 No |
| Power Cord | 1 No |
| User Manual | 1 No |
| External Defibrillator Paddles | 1 Set |
| Trolley with Lockable Castors | 1 No |
| Multifunction Therapy Electrodes | 10 Set (Optional) |
| Li-Ion Battery | 1 No |
| Recorder Paper Rolls | 10 No |
| Gel Bottle | 5 No |
| SPO2 Patient Cable | 1 No (Optional) |
