SYRINGE PUMP

SIMTEK INFUTEK SERIES SYRINGE INFUSION PUMP is the equipment used for Intensive care units, operating theaters, emergency, anesthesiology, cardiology, neonatology, pediatrics, oncology and general hospital wards where high potency drugs are to be precisely delivered at controlled flow rates over an extended period of time. Infutek 900 is the latest design of Infutek series of syringe infusion pump. This model is the complete package of solution for your infusion related issues. Infutek 900 has the facility to provide drugs more easily. User interface of this machine is more attractive. This machine has all the features which you can find in other machines.

Features

  • Compact & Lightweight Design
  • Attractive Dual Screen
  • Accepts Any Brand of Syringe
  • Syringe Safety Flappable Display
  • Illuminated Keys
  • Audio-Visual Alarms

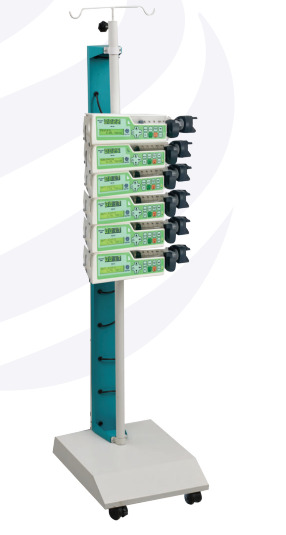

  • Utility of Stacking
  • Drug Library

Technical Specifications

Feature Specification
Syringe Compatibility 5, 10, 20, 30, 50/60 ml syringes with automatic size detection, compatible with any standard brand
Infusion Modes Rate mode, Time mode, Volume mode, Body weight mode, Segment mode
Flow Rate 0.1 to 999.9 ml/hr
Infused Volume 0.1 to 999.9 ml/hr
Elapsed Time 00.01 to 99.59 (hr: min)
Volume Limit 0.1 ml to syringe capacity (higher limits available on request)
Bolus Automatic and manual bolus, safety bolus time interval, programmable bolus volume
Purge Facility to flush air (depends on syringe size)
KVO (Keep Vein Open) Programmable KVO rate from 0.1 to 10.0 ml/hr
Accuracy ±1% (under specified conditions)
Occlusion 3 levels of occlusion pressure, safety anti-bolus mechanism in case of occlusion
Drug Library Library with 48 drug names (expandable upon request)
Alarms Audio-visual alarms for: Occlusion, End of infusion, VTBI near end, Syringe near end, Invalid flow rate, Drive disengaged, Wrong syringe, Low battery, Battery 50%, Mains failure, Preventive maintenance alarm, etc.
Special Features Stacking utility, Body weight mode, Sequential programming mode, Flappable display, Snappable battery compartment, Patient Controlled Analgesia (PCA) (optional), Illuminated front panel keys, Keypad lock facility, Dual display
Power Supply 100-230V AC, 50/60Hz, 12V DC
Battery Type Li-ion, 7.4V DC, 2500mAh, Rechargeable, Snappable battery compartment
Battery Backup 6 to 8 hours at 5 ml/hr
Battery Charging Time 10 hours for full charge
Dimensions (L × H × W) 295 × 87 × 171 mm
Weight Approx. 2 kg
Standards Compliance IEC 60601-1:2020, IEC 60601-1-2:2020, IEC 60601-2-24:2012, IEC 60601-1-4, CE, ISO 13485:2016, IEC 529 (IPX3)
Display Dual Display (LCD & LED), Flappable display, Cabinet to protect syringe during infusion, Illuminated keys for visibility in dark conditions
