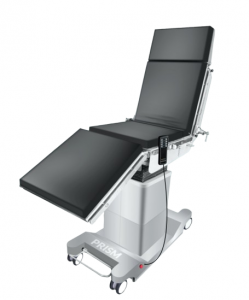

OT Table
Prism Surgicare takes immense pride in working together with some of the leading clinicians in India for the development of our latest Product line: The Robusta Pro OT Table series. Following the same philosophy used when we developed our first Surgical lights, Prism is confident that this principle of working with clinicians and addressing their concerns and requirements at the time of development will ensure that the Robusta OT Table series will also be a successful product in the medical devices market in India. Our constant pursuit of clinical excellence, and a lot of testing has resulted in a tried and tested product which will facilitate the work inside the operating room and help to increase the safety and comfort of the patient.
The Robusta OT Table, true to its name, can take a heavy load of upto 250 kgs in any position. The modularity of the attachments ensure that it can be adapted to match the size of the patient. A longitudinal slide of upto 300 mm ensure it is even more versatile for any procedure.
Premium features, affordable price. Modular design enabling universal clinical application
Motorised movements with manual backup
All motions of the Robusta are driven by an electrical drive actuator. Every motion, height up-down, longitudinal motion, trendelenburg, lateral tilt etc. all can also be adjusted with a manual override switch. This makes the design tropicalised and relieves the clinician of the hassle of being dependent on any external factors during a surgical procedure.

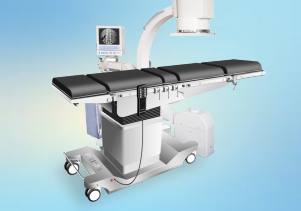

Unrestricted C-arm Access
Modularity of the attachments allow for the table to be used in various versions to have maximum access for the C-arm for a wide range of faculties. Depending on the type of surgical procedure, the Robusta OT Table can be rearranged to give maximum C-arm access to the clinician.

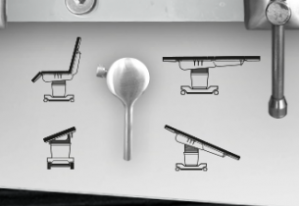

Manual Override
Considering the conditions in India, the Robusta OT Table has an inbuilt manual override switch as standard across the range to ensure O failure of the system and that the clinician can continue the clinical procedure even in the worst case of battery getting completely drained out.

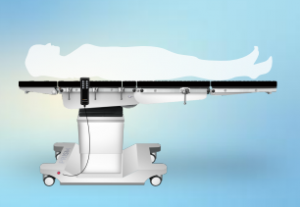

Rugged Design, heavy load capacity
The Robusta OT Table has been designed to be used in the subcontinental conditions. The entire table is made out of SS 304 ensuring long term rust free product. The table has also been designed and tested to hold upto 250 kgs of weight at any position, giving it the necessary Robustness for any clinical procedure.

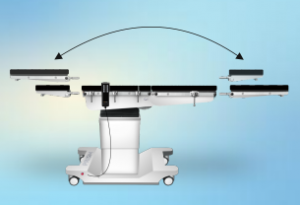

Interchangeable head and leg section

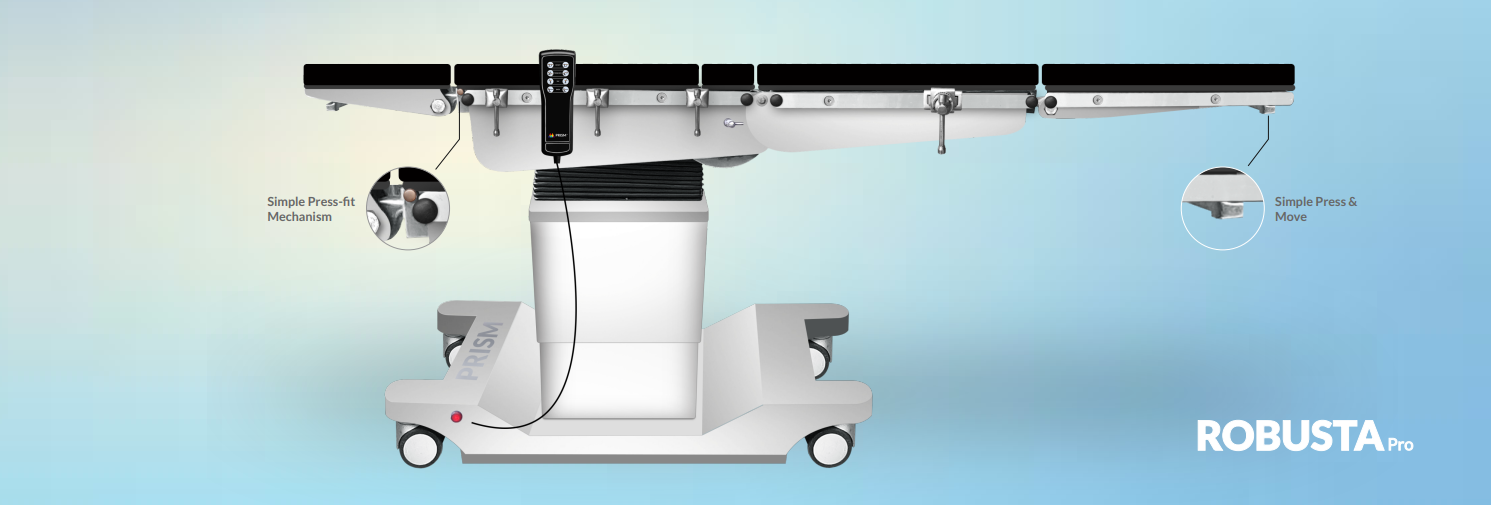

The head and leg section of the robusta OT Table can be interchanged to suit the requirement of the clinical procedure and to suit the surgeons comfort. The attachment can be easily removed using our Smart Locking mechanism with a small push of a button and this innovative design ensures seamless adaptability and enhances efficiency.

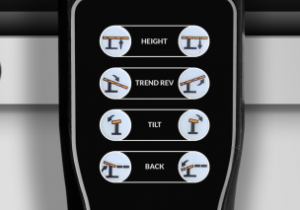

Multiple positions can be easily achieved using memory function
The Robusta OT Table come with an optional advanced controller that can multiple positions in its memory as per the surgeons comfort and surgical requirements.This feature allows quick and precise adjustments, ensuring optimal convenience.
Technical Specifications
| Technical Specification | Details |
|---|---|
| Standard Height Adjustment | 30″ to 42″ (Lift adjustable 12″-18″) |
| Reverse Trendelenburg/Trendelenburg | 30° each side |
| Lateral Tilt | 25°/15° |
| Back Up/Back Down | 90° up, 40° down |
| Longitudinal Slide | 300 mm |
| Head Up | 80° |
| Head Down | 90° |
| Leg Down | 90° |
| Max Load | 250 kg |
| OT Table Weight | 250 kg |
| Customisable Min Height | Up to 26″ |

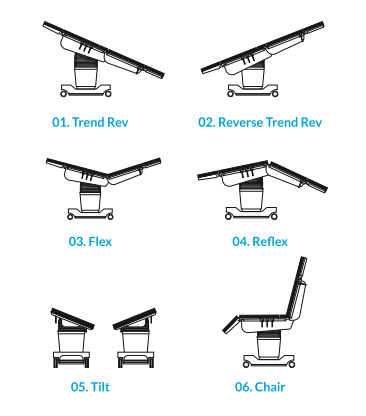

Operating Table Function
