"QUINEN" PATIENT WARMING MATTRESS
Patented “WARM SAFE” Technology innovated by Shreeyash incorporated in the QUINEN that prevents thermal injury to patient during prolonged use of the blanket below patient. This Patented technology ensures that the heat is uniformly transferred to patient, simultaneously it ensures that thermal injury due to continuous pressure & immobility during prolonged surgeries are avoided. This technology relieves the Anesthetics / Surgeons from the fear of Ischaemia caused due to pressure. Clinical data shows that during prolonged surgery, thermal injuries have caused where pressure was greatest and also from the result of prolonged immobility of the patient.
To circumvent this issue, Shreeyash has innovated the “WARM SAFE” technology for absolute safety of the patient, and ensures that the mattress temp. never exceeds 38°C.
Clinical Studies have shown that the most important factor that caused Ischaemia is temp and exposure time. The lowest direct contact temperature responsible for a cutaneous burn in human is 44°C (Mortiz, 1947) with irreversible injury occurring after six hours of exposure, below this threshold temperature blood flow to the tissue tends to affect temp. distribution in the skin only slightly. However, once the threshold temperature has been reached Ischaemia caused by pressure or surgical techniques may well increase the rate at which injury occurs. Also higher temp. setting may cause injury in short time.
Features & Benefits of "QUINEN"
- “QUINEN” Mattress incorporates a technologically advanced Carbon Fiber conductive heating method to effectively maintain Normothermia (normal body temperature) in anesthetized and ICU patients.
- “QUINEN” warms the patient from underneath, allowing full access to the surgical team.
- It warms the patient, not the operation theatre.
- Mattress temperature can be easily selected from 26°C to 40°C using feather touch keys.
- 3-Digit LED display continuously shows the actual temperature of the mattress.
- “QUINEN” blankets/mattress made from Carbon Fiber are absolutely safe as they operate on 12/24/34 V DC.
- The mattress is waterproof, shockproof, easily foldable, and has an incredible long life.
- The control unit can be mounted on an IV pole or trolley.
- Equipped with an over-temperature alarm and auto cut-off facility.
- “QUINEN” comes with 2 autoclavable cotton mattress covers.
- Lightweight, easily foldable, making storage easy.
- Requires no consumables.
TECHNICAL SPECIFICATIONS
| Feature | Details |
|---|---|
| Heating Method | “QUINEN” mattress incorporates technologically advanced Carbon Fiber conductive heating method. |
| Warming Area | “QUINEN” warms the patient from underneath, allowing full access to the surgical team. |
| Effect on Operation Theatre | It warms the patient and not the operation theatre. |
| Temperature Selection | Mattress temperature can be easily selected from 26°C to 40°C by means of feather touch keys. |
| Temperature Display | 3 Digit LED display continuously shows the actual temperature of the mattress. |
| Safety | “QUINEN” blankets/mattress made from Carbon Fiber is safe, working on 12/24/34 V DC. |
| Durability | It is waterproof, shockproof, easily foldable & has an incredible long life. |
| Control Unit Mounting | The control unit can be mounted on an IV pole or trolley. |
| Safety Features | Provided with over-temp alarm and auto cut-off facility. |
| Mattress Covers | “QUINEN” comes with 2 autoclavable cotton mattress covers. |
| Storage | “QUINEN” is lightweight, easily foldable, making storage easy. |
| Consumables | It requires no consumables. |

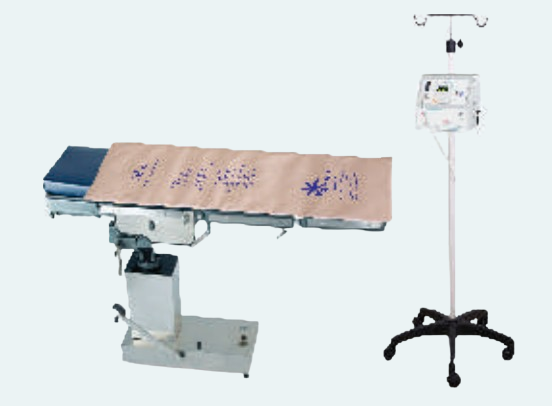

"Quinen" on Operation Table
(Controller on Saline Stand)

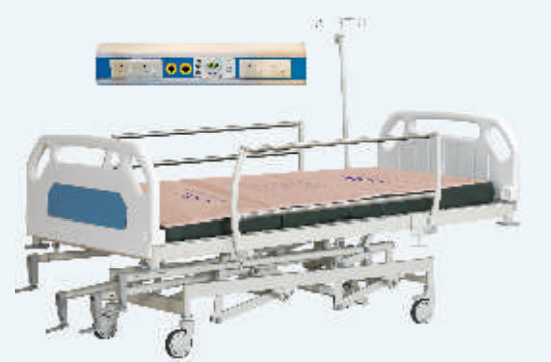

"Quinen" on ICU Bed
(Controller on ICU Panel)

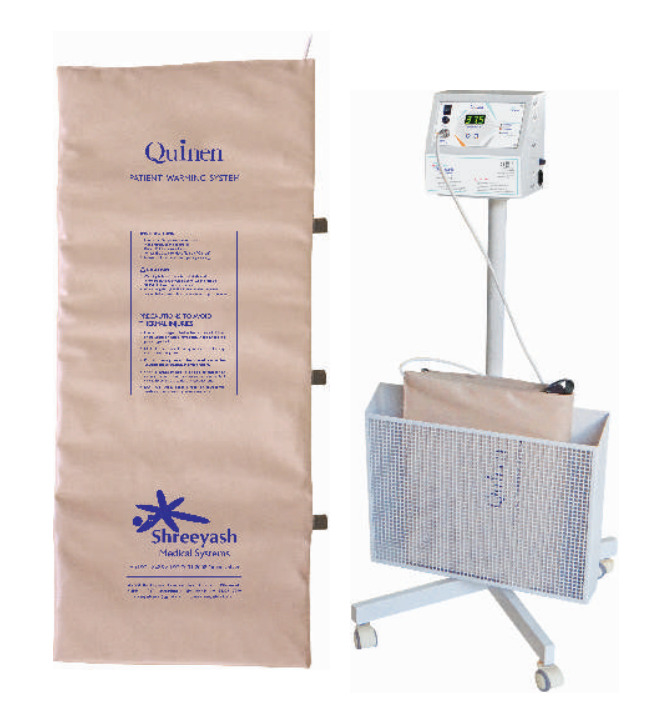

“QUINEN” with Trolley. Trolley, optional at Extra cost.
Note: Size of the Blanket can be varied
as per users requirements.

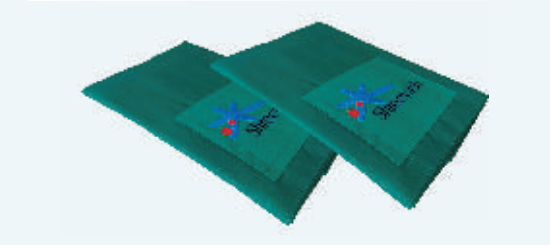

Autoclavable Cotton Mattress Covers
FEATHER TOUCH KEYS ARE PROVIDED FOR THE FOLLOWING
- Temp in °C
- UP Key
- Down Key
- Alarm Mute
INDICATIONS PROVIDED FOR THE FOLLOWING ERRORS
- Heater ON
- Sensor Fail
- Over Temp
